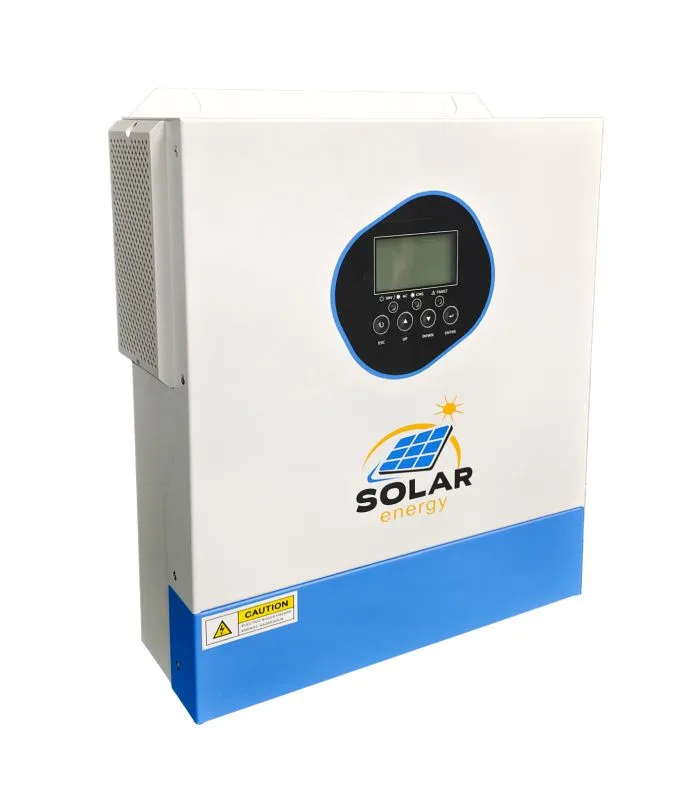

TE3500-24 L Solar Inverter 3.5KW
Original price was: R8,280.00.R3,999.00Current price is: R3,999.00.
The TE3500-24 L Solar Inverter 3.5KW is a reliable solution for water treatment and purification. In stock now at Monster Mechanical.
✅ In Stock — Ready to Ship
TE3500-24L MPPT SOLAR INVERTER 3.5KW data sheet
Product Features
- Pure sine wave
- Power factor 1.0
- Built-in MPPT 60A
- PV input Voltage 30Vdc~160Vdc
- Detachable dust cover for harsh environments
- WiFi remote monitoring is optional
- Support multiple output priorities: UTL, SOL, SBU
Technical Data
MODEL | TE3500-24L |
CAPACITY | 3.5KVA/3.5KW |
Parallel Capability | NO |
INPUT | |
Nominal Voltage | 230VAC |
Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280vac(For Home Appliances) |
Frequency | 50/60 Hz(Auto sensing) |
OUTPUT | |
Nominal Voltage | 220/230VAC±5% |
Surge Power | 7000VA |
Frequency | 50/60Hz |
Waveform | Pure Sine wave |
Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
Peak Efficiency(PV to INV) | 96% |
Peak Efficiency(Battery to INV) | 93% |
Overload Protection | 5s@>=140% load; 10s@100%~140% load |
Crest Factor | 3:1 |
Admissible Power FACTOR | 0.6~1(inductive or capacitive) |
BATTERY | |
Battery Voltage | 24VDC |
Floating Charge Voltage | 27.0VDC |
OverCharge Protection | 28.2VDC |
Charging Method | CC / CV |
Lithium Battery Activation | YES |
Lithium Battery Communication | YES(RS485) |
SOLAR CHARGER & AC CHARGER | |
Solar Charger TYPE | MPPT |
Max.PV Array Power | 1500W |
Max.PV Array Open Circuit Voltage | 160VDC |
PV Array MPPT Voltage Range | 30VDC~160VDC |
Max.Solar Input Current | 50A |
Max.Solar Charge Current | 60A |
Max.AC Charge Current | 80A |
Max.Charge Current(PV+AC) | 120A |
PHYSICAL | |
Dimensions,D x W x H(mm) | 358x295x100 |
Package Dimensions,D x W x H(mm) | 465x380x175 |
Net Weight(Kg) | 7 |
Communication Interface | RS232/RS485 |
ENVIRONMENT | |
Operating Temperature Range | (-10°C to 50°C) |
Storage temperature | (-15°C ~ 50°C) |
Humidity | 5% to 95% Relative Humidity ( Non-condensing ) |
