10″ BB PP Sediment Filters

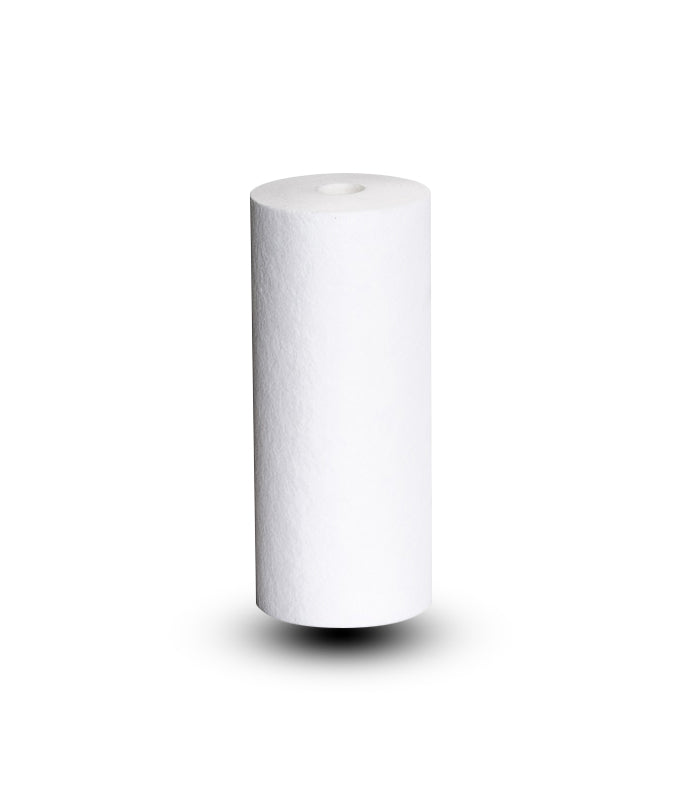

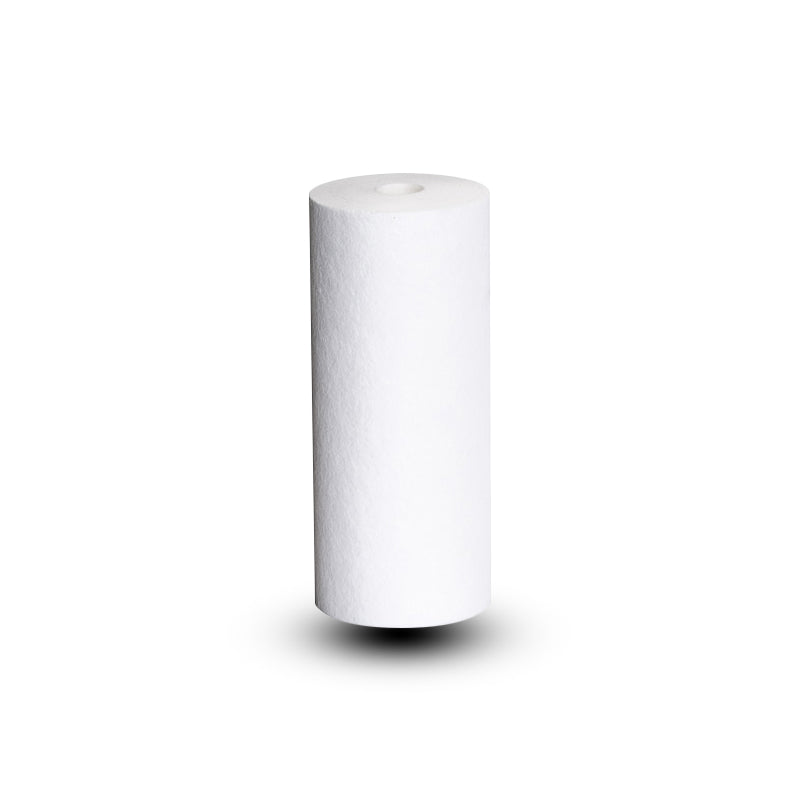

10″ BB PP Sediment Filter – Reliable Polypropylene Filtration
The BB PP sediment filters are high-quality polypropylene cartridges designed to remove suspended solids such as rust, dirt, sand, and other particulate matter from water. These 10″ Big Blue sediment filters act as an effective pre-filter that protects and extends the life of downstream water treatment components like reverse osmosis membranes, carbon filters, and UV systems.
Constructed from three layers of melt-blown polypropylene, the filters offer depth filtration with a graded density structure, capturing both large and fine particles throughout the media. Because polypropylene resists chemical degradation and supports high flow with a low pressure drop, these Big Blue PP sediment filters maintain consistent performance and contribute to overall system reliability.
Key Features of BB PP Sediment Filters
-
Melt-Blown Polypropylene Filtration
- These sediment filters feature a multi-layer melt-blown design that offers true depth filtration and helps remove a wide range of particulate matter from water.
-
Graded Density Structure
- With a graded density profile, the media captures larger particles on the outer layers and finer particles deeper inside, which helps optimise filter life and performance.
-
100% Polypropylene Construction
- All major components—media, core, and end caps—are polypropylene, which resists chemicals and supports reliable operation.
-
Low Pressure Drop
- The design supports high water flow with minimal resistance, helping preserve system efficiency and reduce strain on pumps.
-
Big Blue Compatibility
- These sediment filters are sized to fit standard 10″ Big Blue housings, making them easy to install and replace.
Technical Specifications
| Specification | Detail |
|---|---|
| Filter Type | 10″ BB PP sediment filters |
| Material | Polypropylene (PP) |
| Media Structure | Three-layer melt-blown depth filtration |
| Micron Options | Typically 1–100 µm (varies by model) |
| Max Temperature | Up to ~80 °C |
| Recommended ΔP | ~2.4 bar (35 psi) |
| Size | 10″ × 4.5″ (10″ Big Blue) |
| Compatibility | Standard 10″ Big Blue housings |
Benefits of Using BB PP Sediment Filters
- Improves Water Clarity: Helps remove suspended particles that cause cloudiness and turbidity.
- Protects Downstream Filters: Prevents larger solids from reaching sensitive elements like RO membranes, carbon blocks, and UV systems.
- Supports System Efficiency: The low-pressure drop design helps maintain flow and reduce wear on pumps.
- Easy to Install and Replace: Fits common 10″ Big Blue housings without modification.
Typical Applications
- Pre-filtration in whole-house water systems
- Input stage in reverse osmosis (RO) systems
- Sediment removal in commercial and industrial water lines
- Well water and municipal water sediment filtration
Installation & Maintenance
Install the 10″ BB PP sediment filter in a compatible housing before other treatment stages. Prior to first use, flush the housing to remove loose fibres. Replace the filter when the flow rate drops or the pressure differential increases, typically every 6–12 months, depending on water quality and usage.
