5000 LPH RO System

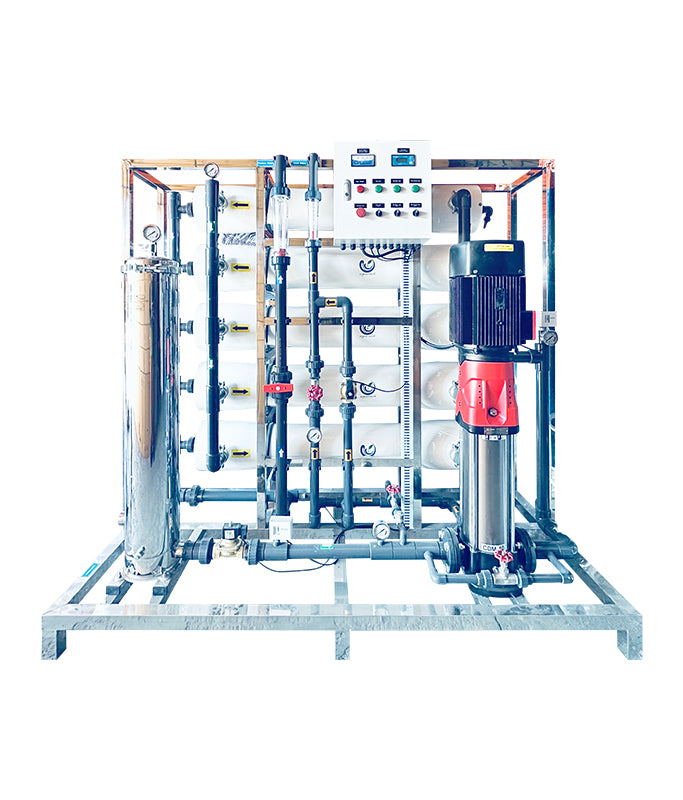

5000 LPH Reverse Osmosis System – Industrial RO Unit
The 5000 LPH reverse osmosis system is a high-capacity industrial RO unit designed purely for membrane-based water purification. This system focuses only on the reverse osmosis process and does not include pretreatment filtration. Therefore, it is ideal for installations where pretreatment already exists or will be supplied separately.
The system produces up to 5000 litres per hour of purified water while maintaining stable pressure, efficient recovery, and consistent output quality.
Reverse Osmosis System Configuration
This reverse osmosis system integrates industrial-grade components to ensure reliable performance. All components work together to deliver high salt rejection and stable operation. In addition, the layout allows easy access for operation and maintenance.
Specifications – Reverse Osmosis System Components
High-Pressure Pump
- Model: CDL8-16
- Power Supply: 380V / 50Hz / 3 Phase
- Flow Rate (Q): 7.5 m³/h
- Head (H): 122 m
- Motor Power: 5.5 kW
Membranes & Housings
- FRP Membrane Housings: 8040 × 5 pcs, rated at 300 PSI
- RO Membranes: 8040 × 5 pcs
- Desalinization Rate: 95% – 98%
Valves, Controls & Instrumentation
-
Brass Solenoid Valves:
- DN40 × 1 pc (Inlet valve – 1.5″)
- DN25 × 1 pc (Flush valve – 1″)
-
SS304 Globe Valves:
- DN15 × 1 pc
- DN25 × 2 pcs
- Electric Control Box: Coated, 1 pc
Pressure Monitoring
-
Pressure Switches:
- –0.5 ~ 3 bar × 1 pc
- 5 ~ 30 bar × 1 pc
-
Pressure Gauges (Panel Type):
- 1 MPa × 2 pcs
- 2.5 MPa × 1 pc
-
Tube-Type Pressure Gauge:
- 2.5 MPa × 1 pc
Flow Measurement & Piping
- Flow Meter Type: Tube type
- Product Water Flow Meter: 1 – 10 T/h × 1 pc
- Waste Water Flow Meter: 0.6 – 6 T/h × 1 pc
- Piping Material: UPVC PN16 (complete set)
Technical Parameters – RO5000LPH
| Parameter | Value |
|---|---|
| Model | RO5000LPH |
| Capacity | 5 T/h (5000 LPH) |
| Power (Motor) | 5.5 kW |
| Total System Power Consumption | 8.8 kW |
| Inlet Pressure | 3 bar |
| Operating Pressure | 10 – 15 bar |
| Voltage | 380V / 50Hz / 3 Phase |
| Membrane Recovery Rate | 15% |
| System Recovery | 50% |
| Desalinization Rate | 95% – 98% |
| Maximum Feed TDS | 2000 ppm |
| Maximum Feed Water Temperature | 30 °C |
| Inlet Pipe Size | 1.5″ |
| Product Water Pipe Size | 1.2″ |
| Reject Water Pipe Size | 1″ |
Key Benefits of the 5000 LPH RO System
- High-output reverse osmosis system only
- Designed for existing or external pretreatment
- Strong TDS and salt removal performance
- Stable pressure for membrane protection
- Industrial-grade components for continuous use
- Suitable for commercial and industrial installations
Typical Applications
This reverse osmosis system is commonly used in:
- Industrial water purification
- Bottled water production (with pretreatment)
- Food and beverage processing
- Manufacturing plants
- Commercial water treatment facilities
