KSB WKLn 150-4 Pump

Pump Characteristics

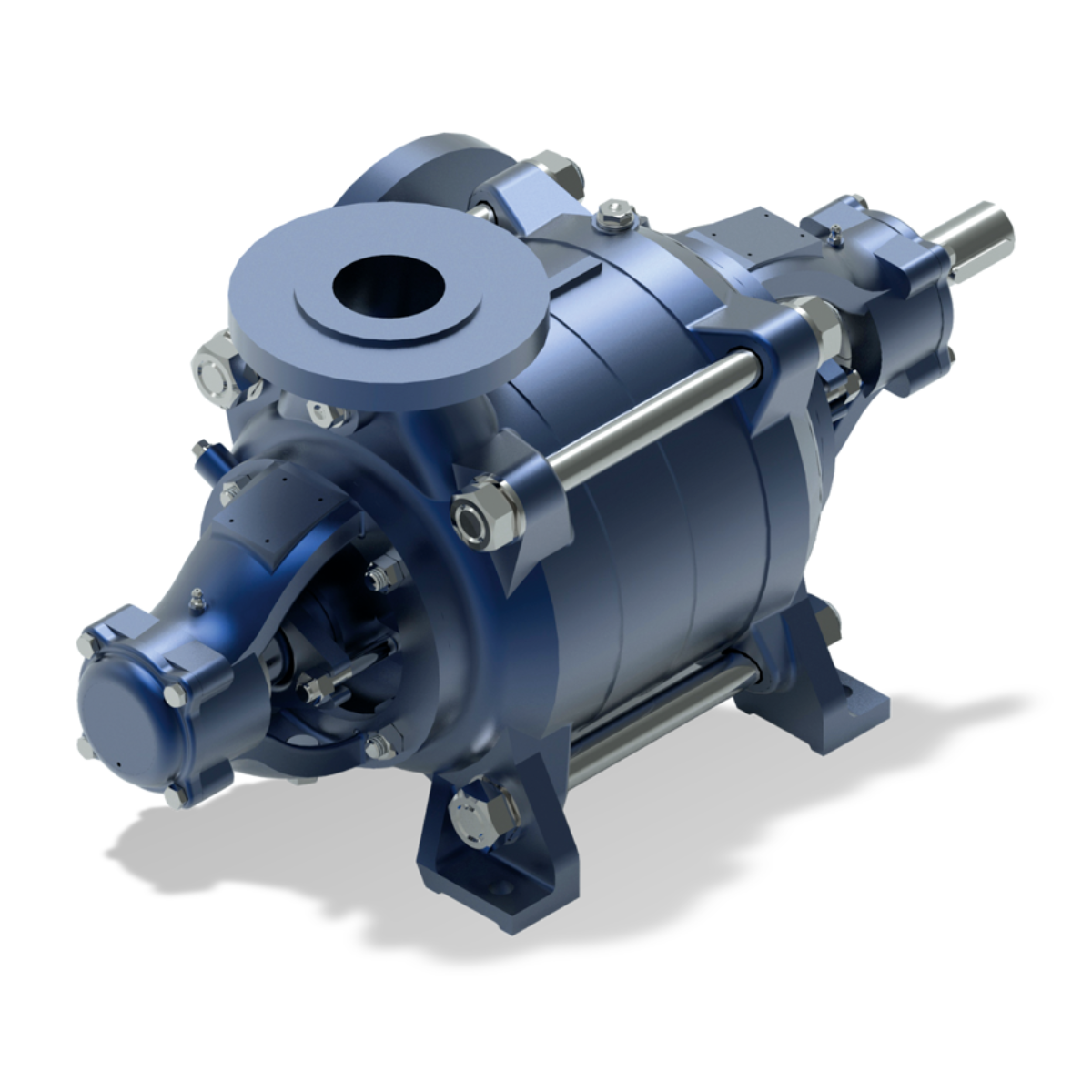

• Model: KSB Multistage Centrifugal Pump WKLn 150-4
• Motor Power Ref.: 250 kW
• Max Head: 280 m
• Max Flow: 14166 l/min
• Inlet Flange: DN200
• Outlet Flange: DN150
• Flange Table: DIN PN40
• Casing Material: Cast Iron
• Impeller Material: Cast Iron
• Orientation: Horizontal
• Stages: 4
• Supply Type: Pump Only, No Motor
• Datasheet: Available on request

The KSB Multistage Centrifugal Pump WKLn 150-4 is a high-performance industrial pump engineered for high-pressure water transport, capable of handling large volumes in municipal and agricultural applications.

Applications

• Municipal water distribution
• High-pressure industrial boosting
• Mining dewatering
• Large-scale agricultural irrigation
• Boiler feed systems
• Fire-fighting networks

Technical Advantages

• Heavy-Duty Bearings: Designed to handle significant axial thrust loads.
• Replaceable Wear Rings: Protects the casing and impellers, extending service life.
• Cast Iron Construction: Robust JL 1040 grade iron for industrial durability.
• Hydraulic Balancing: Reduces strain on mechanical components.
