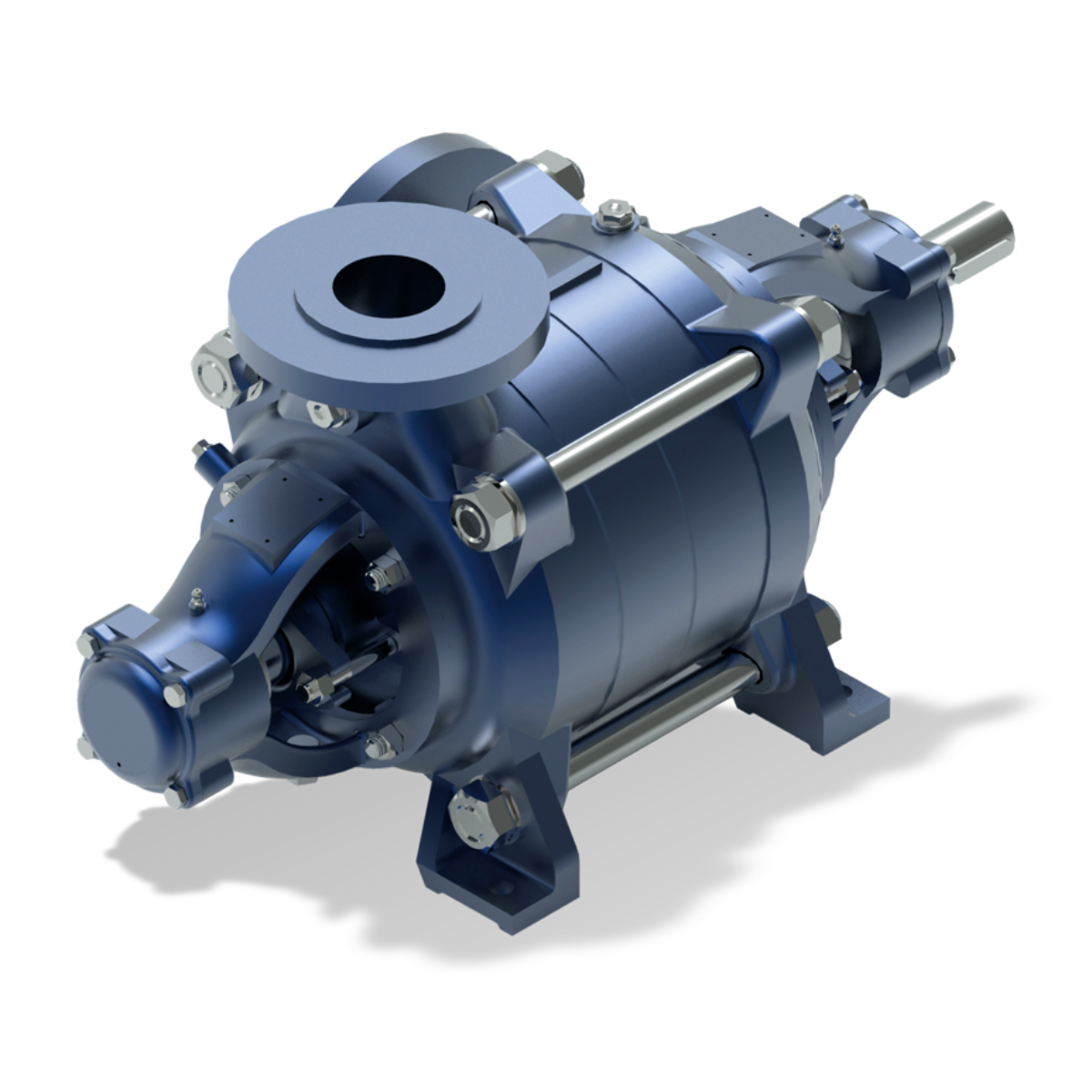

KSB WKLn 32-9 Pump

Pump Characteristics

• Model: KSB Multistage Centrifugal Pump WKLn 32-9
• Motor Power Ref.: 11 kW
• Max Head: 220 m
• Max Flow: 233 l/min
• Inlet Flange: DN40
• Outlet Flange: DN32
• Flange Table: DIN PN40
• Casing Material: Cast Iron
• Impeller Material: Cast Iron
• Orientation: Horizontal
• Stages: 9
• Supply Type: Pump Only, No Motor
• Datasheet: Available on request

The KSB Multistage Centrifugal Pump WKLn 32-9 is a robust, horizontal high-pressure pump designed for heavy-duty industrial and municipal water transfer applications requiring 380V operation.

Applications

• Municipal water supply and distribution networks
• Industrial pressure boosting systems
• Boiler feed and condensate handling
• Large-scale irrigation systems
• Fire-fighting systems
• Cooling water circulation

Technical Advantages

• Ring-Section Design: Radially split casing ensures high pressure containment.
• Cast Iron Construction: Durable JL 1040 cast iron volute and impellers for longevity.
• Replaceable Wear Rings: Lowers maintenance costs by protecting the casing.
• Balanced Thrust: Hydraulic balancing reduces axial loads on bearings.
