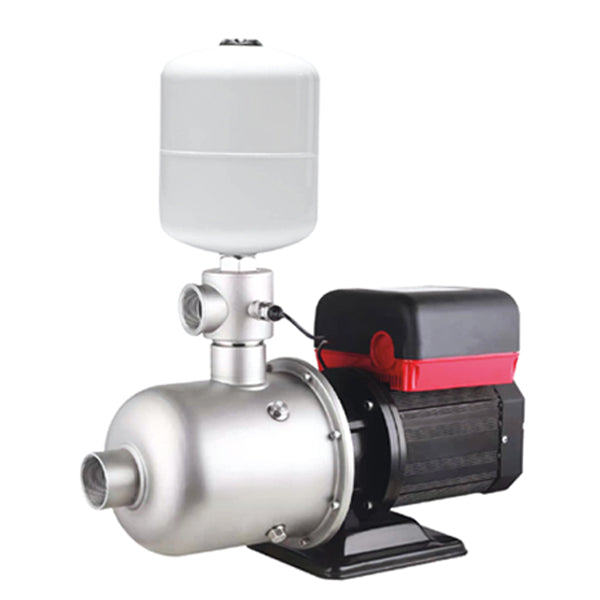

TESK PMC12-40 Intelligent VSD Booster Pump – 2.2 kW, 18 m³/h, 60 m Head

PMC12-40 Intelligent VSD Booster Pump

The TESK PMC12-40 is an integrated constant-pressure booster system with variable-speed control, LCD display and adjustable pressure.

TESK August 2026 technical data

• Motor power: 2.2 kW
• Rated duty: 12 m³/h at 40 m head
• Maximum flow: 18 m³/h
• Maximum head: 60 m
• Maximum speed: 4,500 rpm
• Current TESK price-list supply designation: 230 V
• Technical voltage range: 220 V ±20%
• Frequency: 50/60 Hz
• Connection sizes: 2″ / 2″
• Maximum suction distance published by TESK: 9 m

Selection note: Maximum flow and maximum head are curve endpoints and do not occur simultaneously. Verify the required duty point and suction conditions before final selection.
