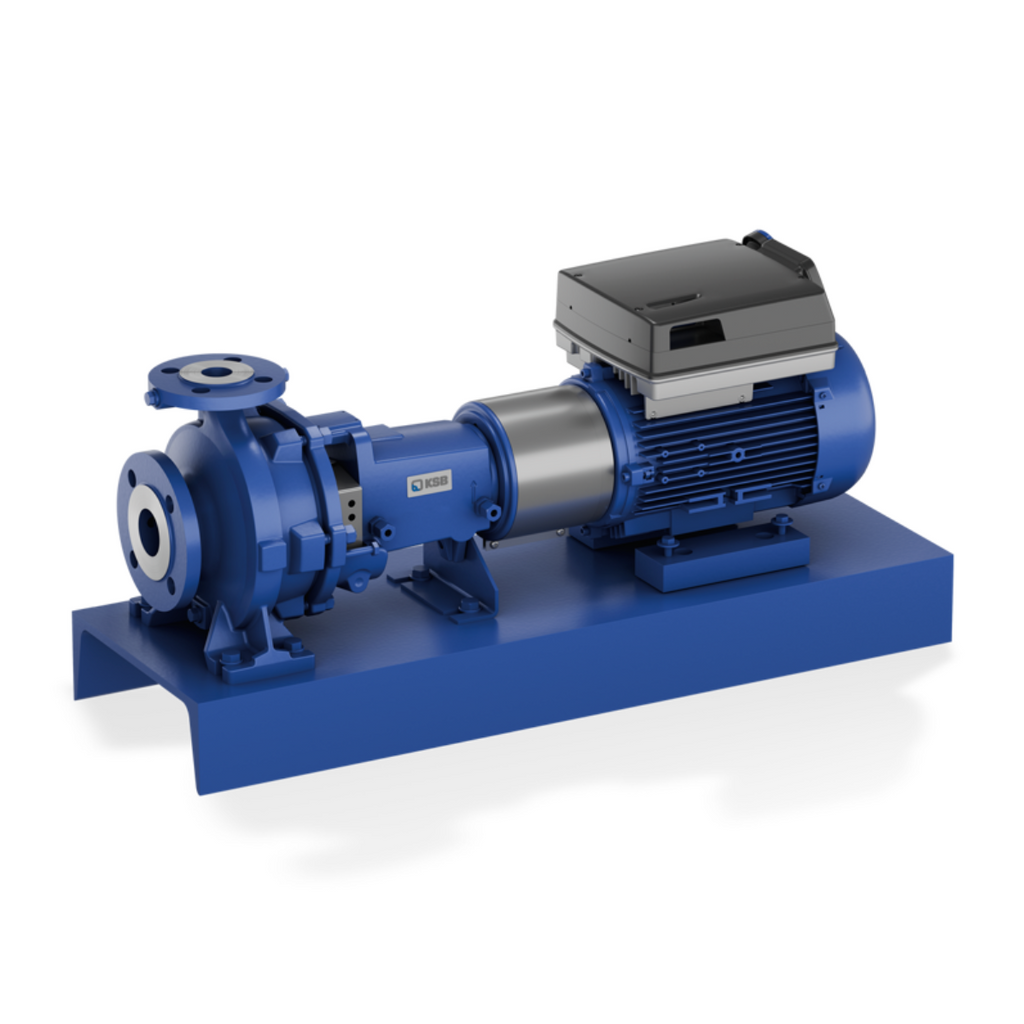

KSB Etanorm 65-50-315 Pump

Pump Characteristics

• Max Head: 150 m
• Max Flow: 1833 L/min
• Motor Power (Ref): 55 kW
• Inlet Flange: DN65 (65mm)
• Outlet Flange: DN50 (50mm)
• Voltage (Motor): 380V
• Casing Material: Cast Iron
• Impeller Material: Cast Iron
• Supply Type: Pump Only, No Motor
• Datasheet: Available on request

The KSB ETANORM 65-50-315 Pump is a specialized high-pressure unit built for extreme pumping conditions where standard pumps cannot deliver the required head.

Applications

• Long-distance pipeline transfer
• Fire-fighting systems in high-risk zones
• High-pressure industrial cleaning
• Quarry and mine water management

Technical Advantages

• Reinforced Casing: Handles high internal pressures safely
• Heavy Duty Shaft: Prevents deflection under maximum load
• Efficient Hydraulics: Maximizes flow while maintaining pressure
• Long Life: Designed for continuous duty in harsh environments
